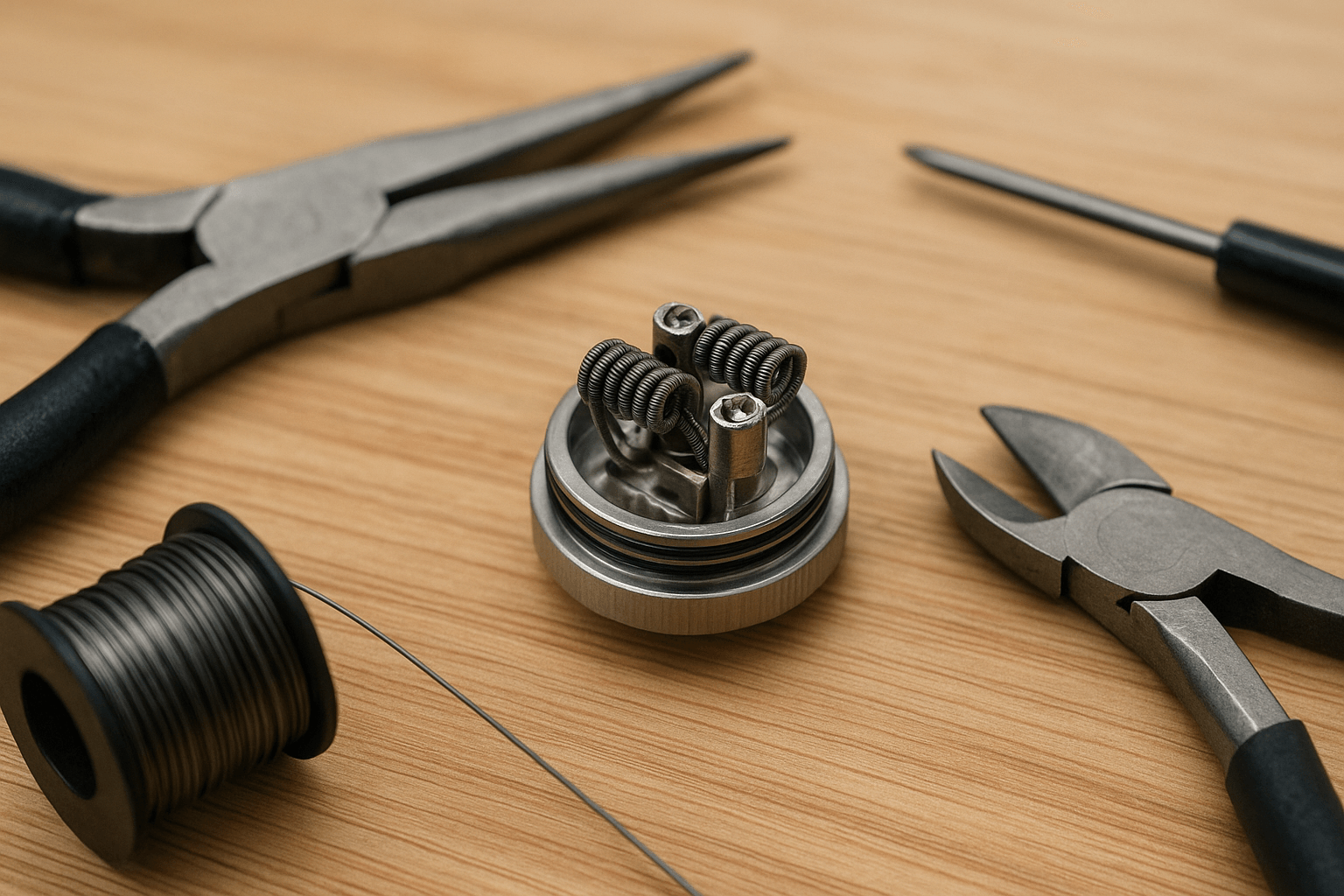

Building a Dual-Coil Setup: What to Know Before You Start

Thinking about building a dual-coil setup? Two coils can increase heating surface area and change vapor production, airflow requirements, power demand, and overall performance—but they also make resistance and battery planning more important.

This guide explains the electrical principles behind parallel dual-coil builds, the tools commonly used, and the checks that should be completed before firing a rebuildable atomizer. It is not a substitute for the instructions provided by your mod, atomizer, battery, or coil-material manufacturer.

Why Use a Dual-Coil Setup?

A dual-coil build places two heating elements in the atomizer rather than one. Depending on the wire, coil mass, airflow, power level, and deck design, this can change how quickly e-liquid is heated and how much vapor is produced.

Potential Differences Compared With a Single Coil

• More heating surface: Two coils can expose more wick and e-liquid to heated wire.
• Higher power demand: Dual-coil builds often require more power than comparable single-coil setups.
• More heat: Increased power and coil mass can increase heat generation.
• Different airflow needs: Atomizers designed for dual coils typically need airflow positioned appropriately around both coils.

Dual coils are not automatically better in every category. Ramp-up time, flavor, vapor density, and efficiency depend heavily on wire type, coil dimensions, resistance, wattage, airflow, and atomizer design.

Ohm’s Law and Dual-Coil Resistance

Ohm’s Law describes the relationship between voltage, current, and resistance. Understanding those values becomes especially important with rebuildable atomizers because changing coil resistance changes the electrical load placed on the device.

If you need a refresher on the electrical relationships involved, our Ohm’s Law Calculator explains voltage, resistance, current, and power calculations in more detail.

Parallel Dual-Coil Resistance

When two equal-resistance coils are connected in parallel, the total resistance is half the resistance of either individual coil.

• Two 0.5Ω coils in parallel: approximately 0.25Ω total resistance.
• Two 1.0Ω coils in parallel: approximately 0.50Ω total resistance.

For coils of different resistance, use the parallel-resistance equation rather than simply dividing by two. Ideally, a dual-coil build should use matching coils so they heat as consistently as possible.

Tools Commonly Used for a Dual-Coil Build

• A rebuildable atomizer designed to support dual coils.
• Wire cutters and appropriate screwdrivers or hex tools.
• A dedicated resistance meter or regulated device capable of accurately reading resistance.
• Ceramic tweezers for coil adjustment where appropriate.
• A coil rod, jig, or appropriately sized mandrel.
• Suitable coil wire.
• Wicking material intended for vape use.

Choosing Wire

Wire material affects resistance, ramp-up behavior, and which device modes may be appropriate. Common materials include Kanthal A1, stainless steel, and nichrome. The correct choice depends on your device and the mode you intend to use.

• Kanthal A1: Commonly used in wattage or power mode.
• Stainless steel: Some grades are used in both wattage mode and compatible temperature-control systems.
• Nichrome: Often has lower resistance per comparable length than Kanthal and may heat differently depending on the build.

There is no universal wire gauge that is ideal for every dual-coil setup. Gauge, wrap count, internal diameter, material, and coil configuration all affect final resistance and thermal behavior.

Building a Dual-Coil Setup: Key Checks

1. Prepare Matching Coils

• Use the same wire material and gauge for both coils.
• Keep the number of wraps and internal diameter consistent.
• Check that both coils are physically similar before installation.

2. Install the Coils Carefully

• Position both coils according to the atomizer manufacturer's deck and airflow design.
• Secure the leads without overtightening or damaging them.
• Make sure coil leads are trimmed and cannot contact the chamber or other unintended metal surfaces.
• Check resistance before applying normal operating power.

3. Check and Stabilize the Build

Before wicking, verify that the resistance reading is stable and reasonably close to what you expected from the build. A resistance reading that jumps significantly can indicate a loose connection, poor installation, damaged coil, or another problem that should be corrected before use.

If your build method involves brief low-power pulsing to identify uneven heating, follow the atomizer and wire manufacturer's recommendations. Avoid manipulating live conductive coils with metal tools.

4. Wick Both Coils Evenly

• Use comparable wick density in both coils.
• Avoid compressing the wick so tightly that e-liquid cannot move through it effectively.
• Trim and position wick tails according to the atomizer deck design.
• Fully saturate the wick before normal use.

Battery Safety Comes First

Battery limits should never be chosen from a universal rule such as “use at least a 20A battery.” The correct battery depends on the specific device, battery configuration, intended power level, and the continuous current rating supplied by the battery manufacturer.

The FDA advises users to understand and follow the manufacturer's recommendations for their vape and batteries, use batteries recommended for the device, and avoid mixing different battery brands, charge levels, or old and new cells. FDA also notes that vape battery fires and explosions, while apparently uncommon, can cause serious injuries.

For a broader review of battery condition, charging, storage, and handling, see our vape battery safety guide.

Before Using the Build

• Confirm that the final resistance is within the range supported by the device.
• Check the battery manufacturer's actual current and operating specifications.
• Do not use batteries with damaged wraps, dents, swelling, leakage, or other visible damage.
• Make sure the atomizer has no obvious short circuit or unstable resistance reading.
• If using a multi-battery device, follow the manufacturer's battery-matching and replacement instructions.

Regulated vs. Unregulated Devices

Regulated mods typically include electronic control circuitry and may provide protections such as resistance limits, current limits, short-circuit protection, or temperature monitoring. These features vary by device and should not be treated as a reason to ignore battery or coil specifications.

Mechanical and other unregulated devices do not regulate power in the same way. Battery voltage, coil resistance, current demand, battery limits, and the physical condition of the build become particularly critical. They are not appropriate for users who do not already understand battery safety and electrical calculations.

Troubleshooting a Dual-Coil Build

Unstable Resistance

If resistance jumps or changes unexpectedly, stop using the build. Check coil leads, terminal screws, the atomizer connection, and whether any wire is touching unintended metal surfaces. Do not continue firing the atomizer until the resistance reading is stable.

Uneven Heating

Uneven heating can result from mismatched coils, poor connections, coil positioning, or differences in wire geometry. Verify that both coils are built from the same material and dimensions and that their connections are secure.

Burnt or Dry Hits

A burnt or dry hit can occur when the wick cannot supply enough e-liquid to the coil, the power level is too high for the build, or the wick has deteriorated. Stop firing the device, inspect the wick and coil, and verify that the operating power is appropriate.

Device or Battery Becoming Unusually Hot

Stop using the device if the battery or mod becomes unusually hot, swells, leaks, emits an unusual smell, or shows other signs of damage or abnormal behavior. Do not keep firing the device to determine whether the problem will resolve on its own.

Coil Types and More Advanced Builds

Complex coil designs such as Claptons, twisted wire, and parallel-wire builds can have different resistance, mass, surface area, and power requirements. They should not be treated as direct substitutes for a basic round-wire coil without recalculating and rechecking the complete build.

The more complex the build becomes, the more important it is to measure actual resistance rather than relying only on an expected resistance from a calculator or build specification.

Maintenance and Monitoring

There is no universal schedule requiring every coil to be cleaned weekly, cotton to be replaced at a fixed interval, or resistance to be checked only monthly. Maintenance needs depend on usage, e-liquid, coil design, power level, and equipment condition.

Instead, inspect your setup regularly and pay attention to changes such as:

• Unexpected changes in resistance.
• Loose or damaged coil connections.
• Significant buildup on the coil.
• Persistent burnt or dry taste.
• Reduced wicking performance.
• Unusual battery or device heating.

Know When to Stop

Do not continue using a build simply because it still fires. Stop and inspect the device if resistance becomes unstable, the battery or device becomes unusually hot, the atomizer appears shorted, the battery is damaged, or the build behaves differently from what you expected.

If you cannot identify the cause confidently, replace the build or use a manufacturer-approved coil instead of repeatedly testing a questionable setup.

Final Thoughts

A dual-coil build can offer a different vaping experience, but it also adds electrical and mechanical variables that need to be checked carefully. Matching coils, stable resistance, appropriate wicking, correct battery selection, and manufacturer specifications matter more than chasing the lowest resistance or highest possible power.

Use Ohm’s Law to understand the electrical relationships, verify resistance with an appropriate meter or regulated device, and treat battery and device specifications as hard limits rather than suggestions.
